COMPACT TYPE DECOILER CUM STRAIGHTENER

COMPACT DECOILER CUM STRAIGHTENER for Press feed equipments

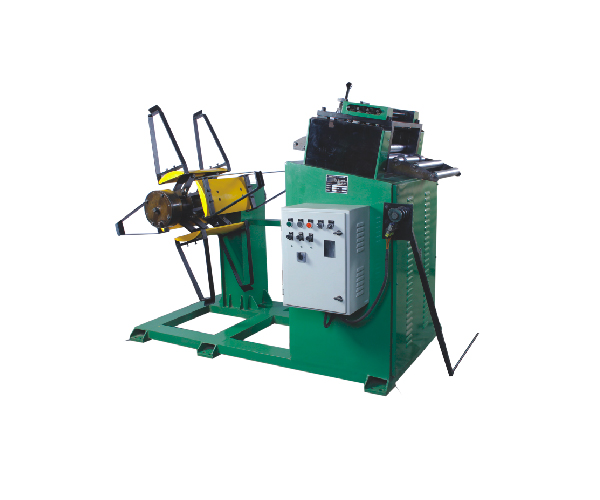

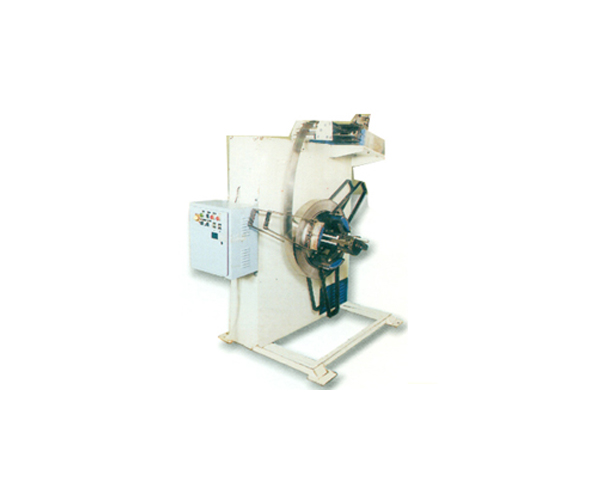

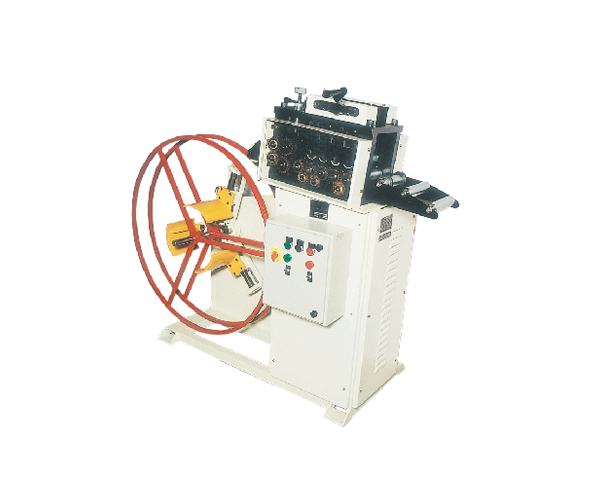

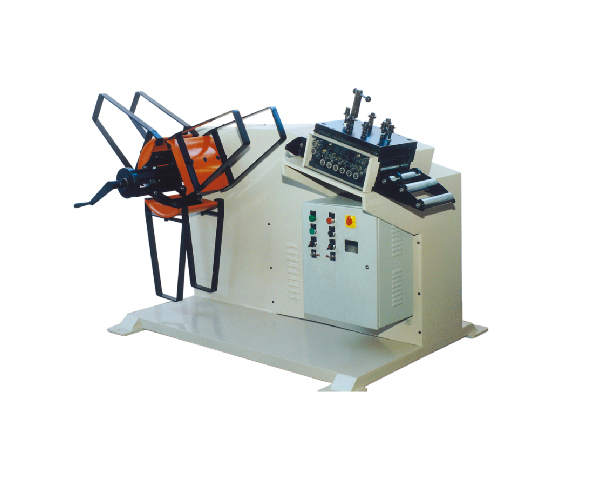

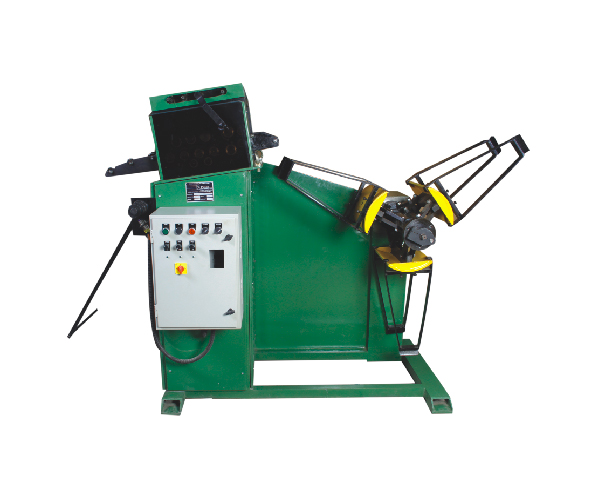

The system comprises of Single Spindle Decoiler along with driven Straightener mounted ahead of it. The feature of the system is that as the are mounted on same base structure, the alignment with respect to each other saving space & installation time.

Available in various models with fixed speed / A. C. variable speed & having loop control system to synchronize with Press-Feeding Speed along with control panel.

The decoiler & straightener heads are selected from our standard range to offer modularity & fast deliveries still maintain the quality levels of individual equipments.

Standard Models for Decoiler for Press Feed Equipment

Compact Unit ( Standard Models )

Model
Max.
Weight
K.G.
Max.
Width
(mm)
Thickness
(mm)
JAW
Expansion
(mm)
Coil OD.
Max
(mm)
power
(HP)
Centre
Height
 from
Floor
Occup. Area  (mm)

L.     W.     H.

CPSD-150-100-40-9 150 100 0.4-1.8 250-450 700 1.0 1175 1600X700X1300
CPSD-300-150-40-7 300 150 0.4-1.8 300-450 1000 1.5 1040 1660X840X1200
CPSD-500-150-32-9 500 150 0.35-1.2 300-500 1000 1.5 1030 1600X840X1200
CPSD-500-150-50-9 500 150 0.5-2.5 300-500 1000 1.5 1090 1650X840X1380
CPSD-500-200-40-9 500 200 0.4-1.8 300-500 1000 1.5 1100 1650X840X1450
CPSD-1000-300-65-7 1000 300 0.7-2.0 330-450 1200 2.0 1200 2100X1000X1540
CPSD-2500-400-65-7 2500 400 0.7-2.0 460-520 1200 3.0 1340 2500X1165X1630

All above equipments are designed for Line speed of 20 Mtrs. Per Minute.

Models of higher capacity or Higher or Lower Line speeds are available on request.

Technical specifications are indicative and subject to change to suit end application.
