History and Mission
Since 1988 we have designed and built special automatic machines in several application sectors. Our structure is based on the experience of our technicians and allows us to offer a valid and reliable product, and a very efficient after-sale service. Founded as an engineering study, L.C.M. PROGETTI has developed a production department for the manufacturing of the machineries we design.
At the beginning the production was mainly concerned with the manufacturing of assembly lines commissioned by our costumers. Some innovative products, totally developed by LCM, like our Scara Robot with 4 controlled axis, were used in the production and assembly lines engineered in those years.
In the picture our project department
At the beginning of the new millennium the company's mission changed, meeting the new customer's desires. Complete testing lines and dedicated machineries to test the products are developed (e.g. NDT Pressure test for welded parts, electrical insulation and rigidity, vision checks...). The production of automatic machines for welding was more and more empowered, with welding robots, gantries and automatic welding benches, with the most innovative welding technologies such as Plasma.
As a further change, the our core business became the production of metal working machines to improve the quality in our customer's production.

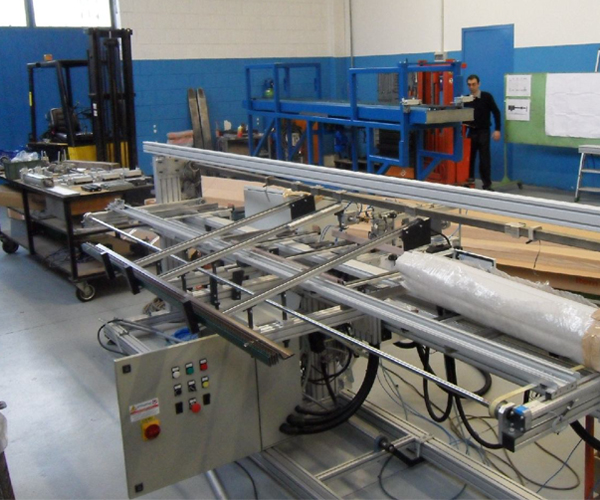

In the picture our assembling department
Lines and Machineries

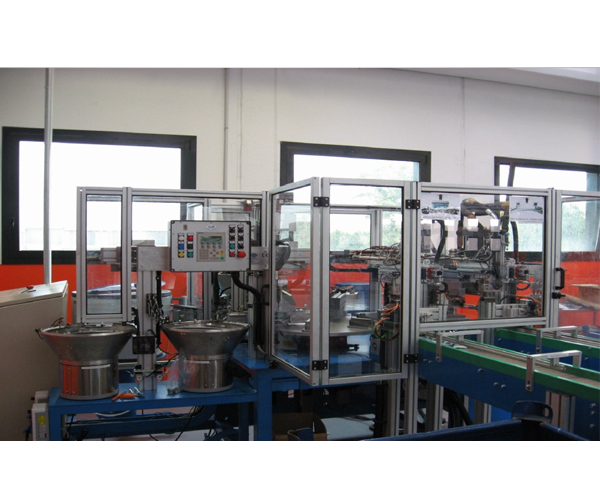

Automatic assembling machine for hinges of washing machine doors

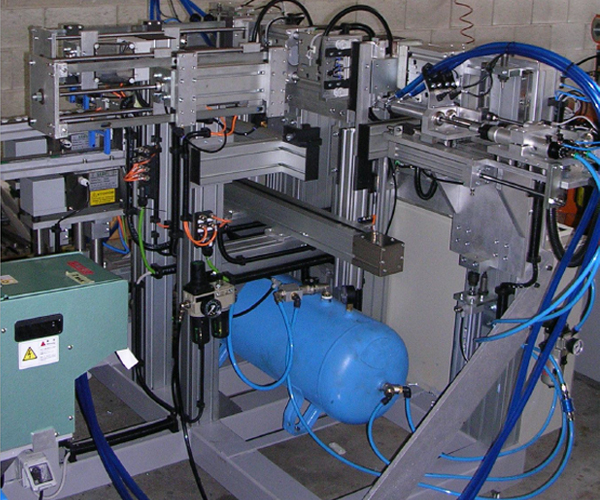

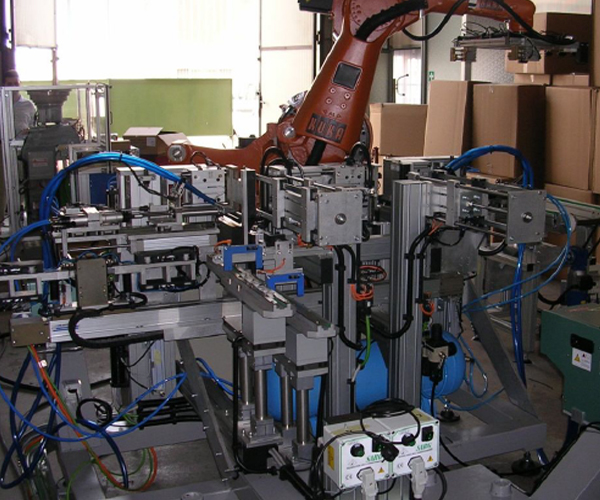

Assembling line with KUKA Robot for Dishwashers
Assembling line with KUKA Robot for Dishwashers

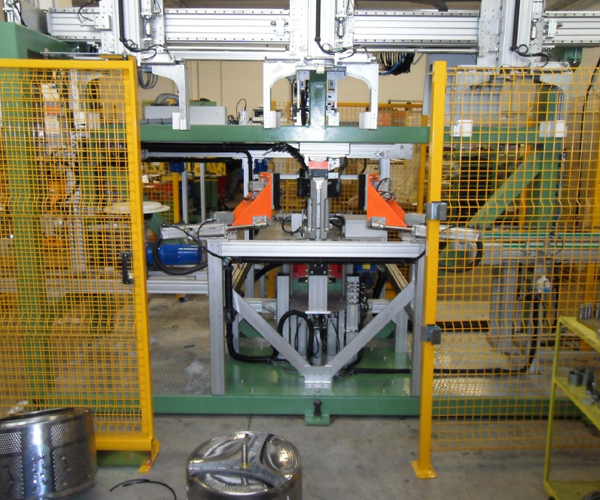

Assembling machine of washing machine drums and blades

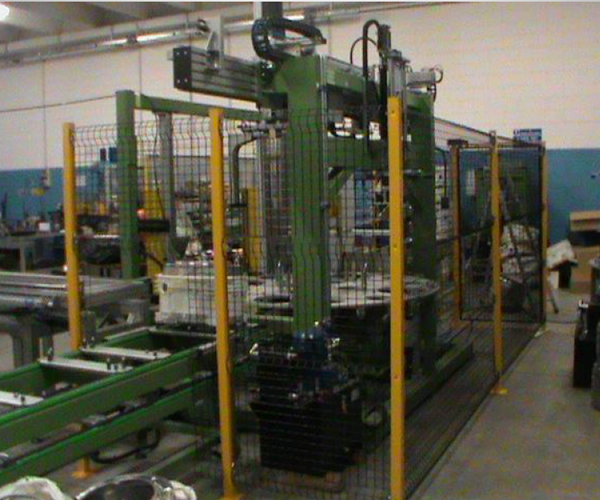

Assembling machine drums group of household washing machines

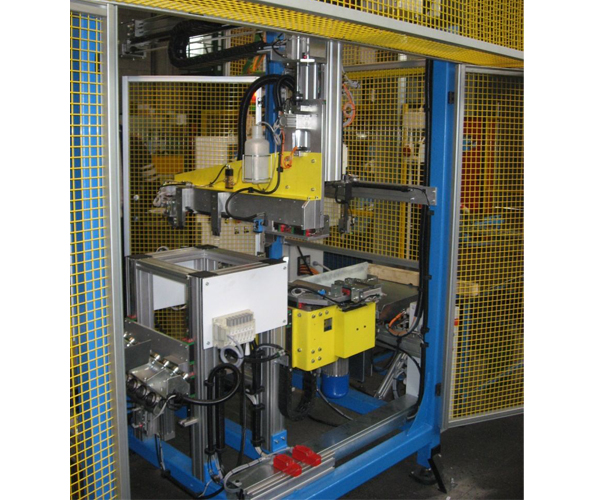

Welding machine for canisters
- • GTAW welding of bodies for fire extinguishers
- • Maximum lenght of the weld 800 mm
- • Maximum diameter of the tank 170 mm
- • Production rate 33 sec/PCS
- • Automatic loading of sheet from the 'sheet rolling machine'
- • Optical research of the edges to weld
- • Automatic loading of the weldin bench

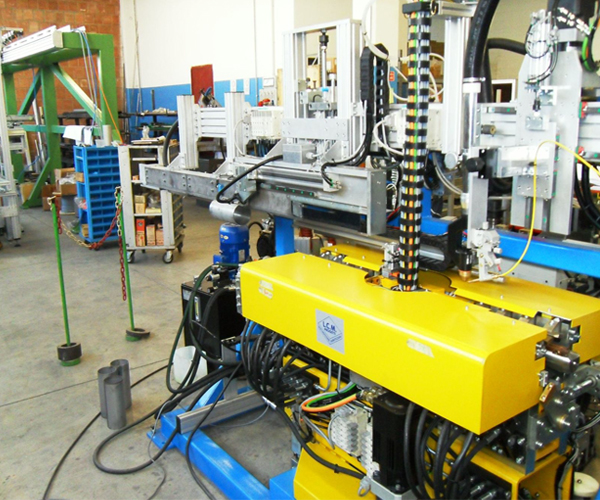

Plasma Welding Machine

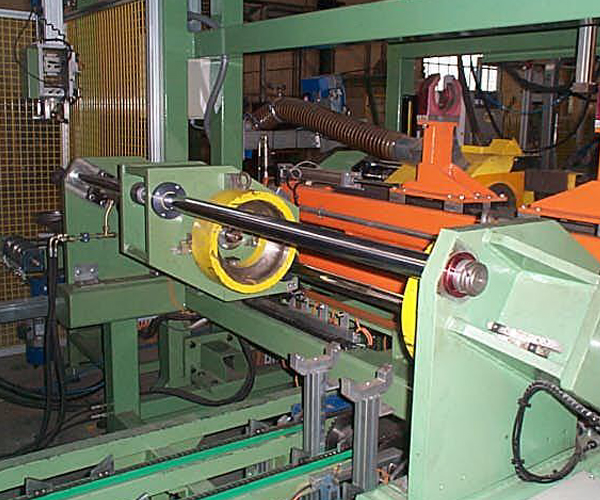

Handling and coupling of caps in round welding station

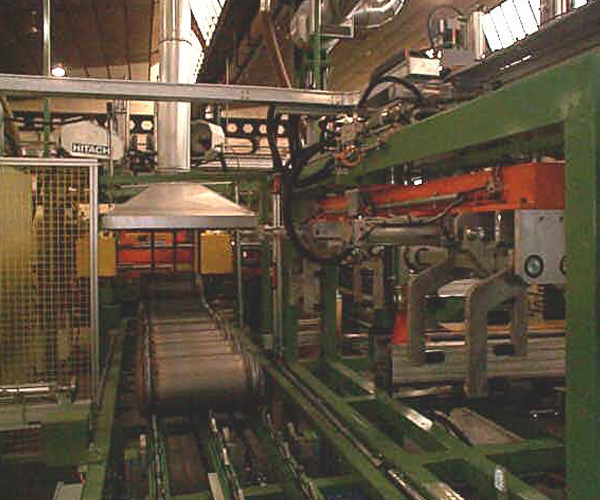

GTAW production line of gas tanks

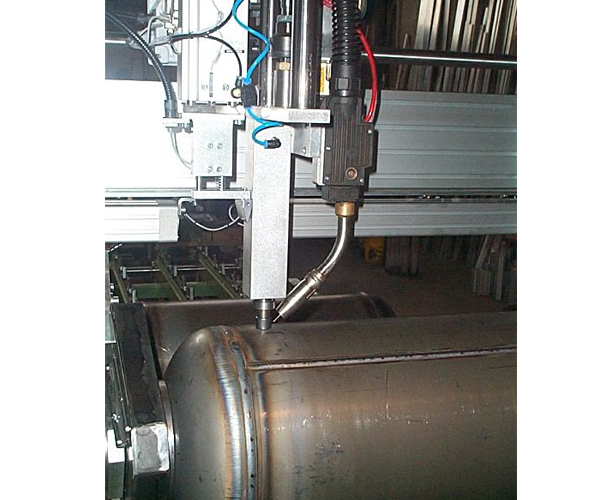

GTAW welding system for joint
Handling and coupling of caps in round welding station

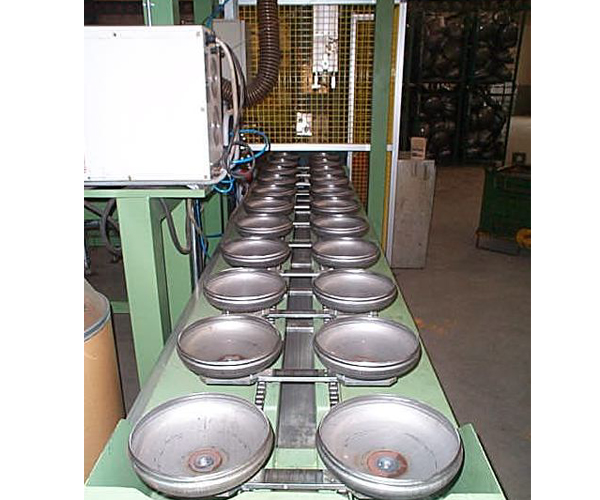

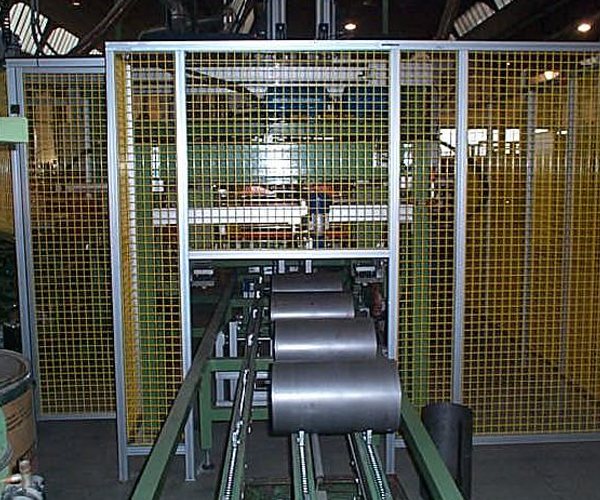

Assembling line for caps and canisters

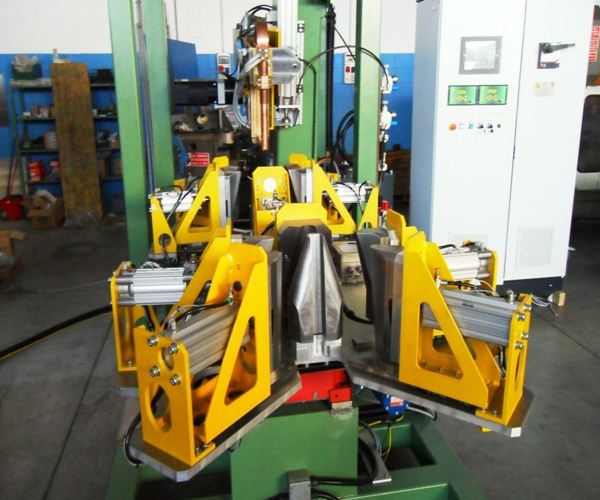

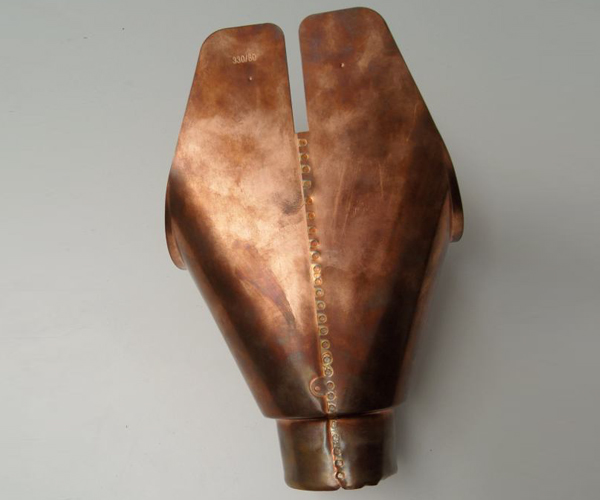

Spot welding machine for rain collectors
Assembling line for caps and canisters
Assembling line for caps and canisters
This machine welds rain collectors in copper, with a welding unit at double head the cicle time is of 35 sec/pcs. The bench where the collectors are placed is on a rotary table that allows to the operatore to load the piece not welded while the machine is welding the previous.

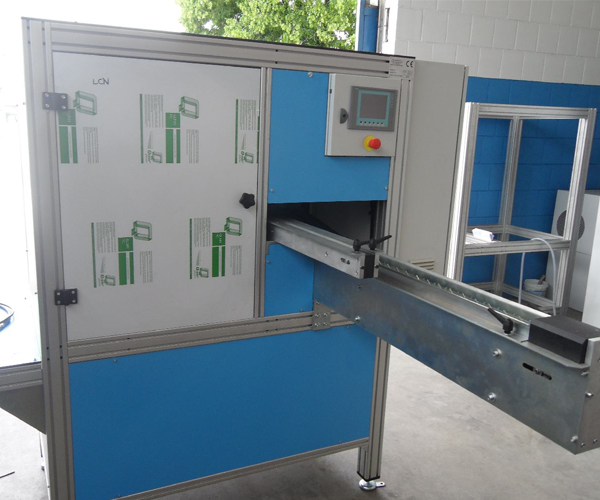

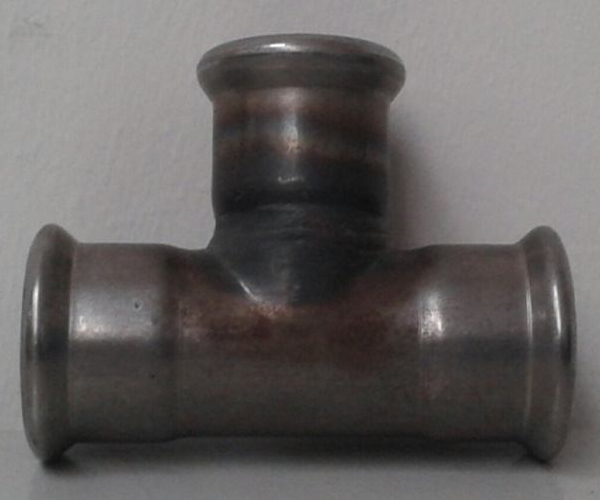

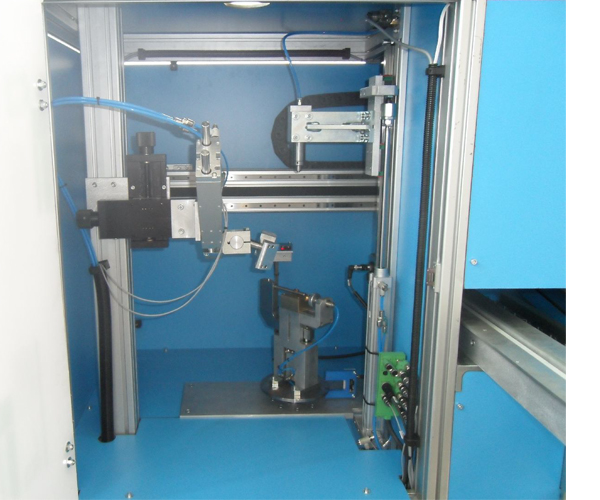

Automatic welding machine for water collectors (GTAW)
Assembling lines and welding of tanks

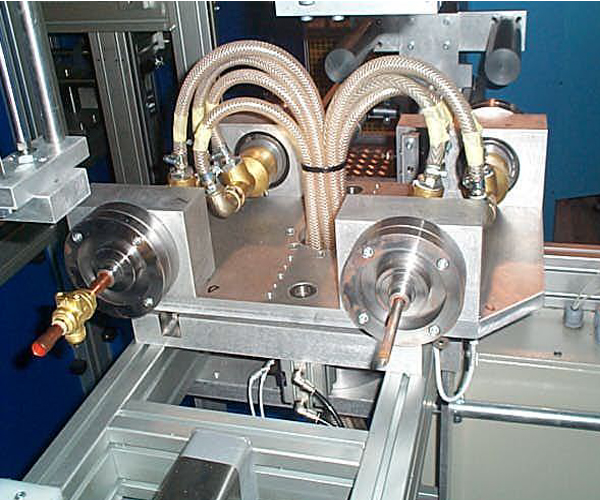

Automatic welding machine for valves

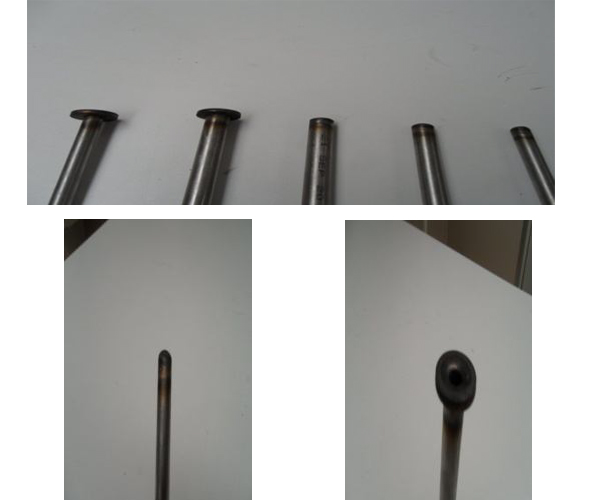

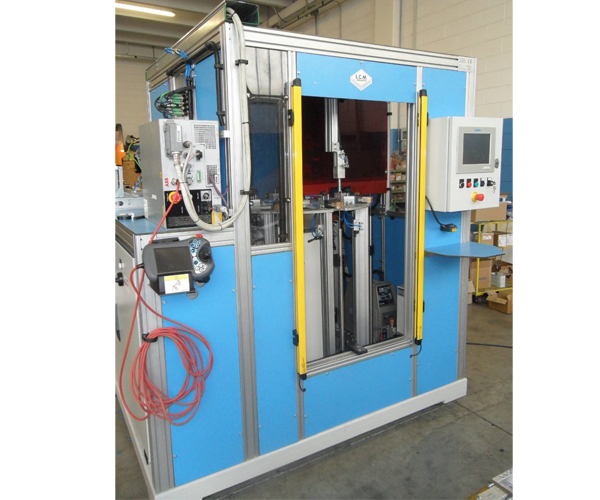

Welding of temperature probes in stainless steel
GTAW autogenic for tubes and flanges, on benches vise for termo prefix :
- • 5 different alloys, with differente welding parameters. Welding that warrants the total renovation and watertight seal in aggressive environment
- • Diameter of the tubes from 9 to 12 mm
- • Mnaula loading of the tubes; automatic alimentation of caps anfd flanges folowing the scansioned bar code.
- • Robot 6 axis ABB iRB140 for welding torche moving on a spiral escalation route
- • Industrial PC touch screen with database and production log, operator ablilitation through badge RFID and adaptative menu
- • Able to make leak test with spectrometer with elium
- • Production time: 1 pcs every 20 secs

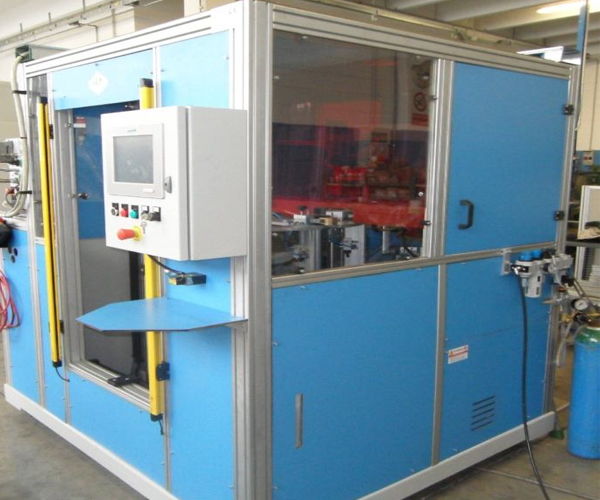

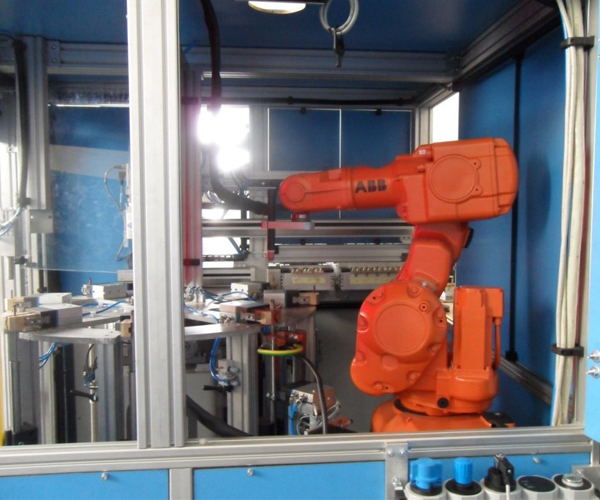

Detail of ABB welding robot
TEST + CHECKING MACHINE

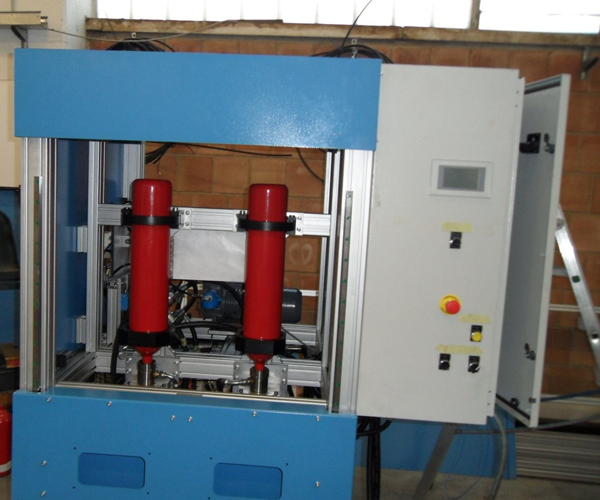

Hydraulic test of tanks at 250 Bar
Test machine for welded fire extinguishers; 2 bottles are checked simultaneously at 25 Mpa (250 bar). Distructive tests are also possible

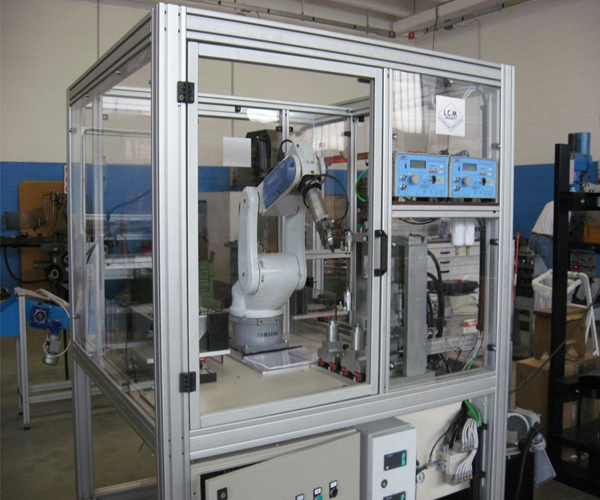

Test: leak test of welded valves
High pressure NDT-leak test for gas valves. Handling with 6-axes-robot; the weld is checked at 30 Mpa with two independent electronic devices.

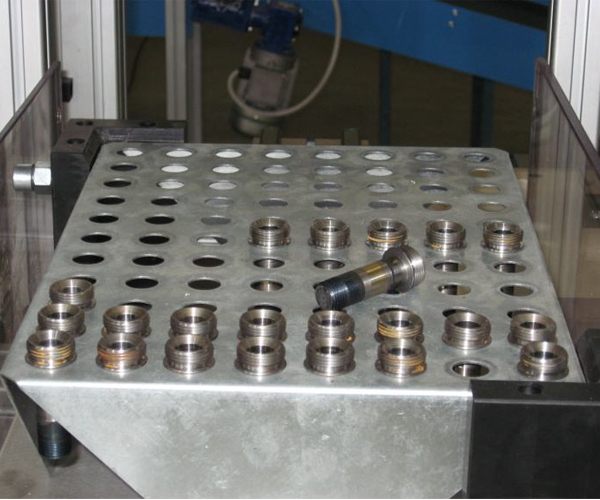

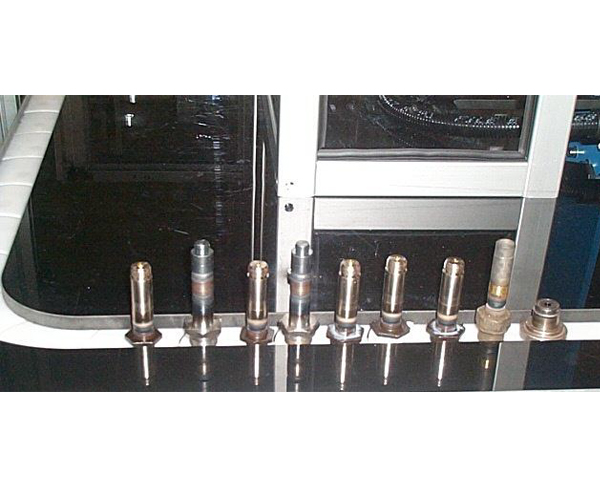

Pictures of the vavles to be welded
Pictures of the vavles to be welded

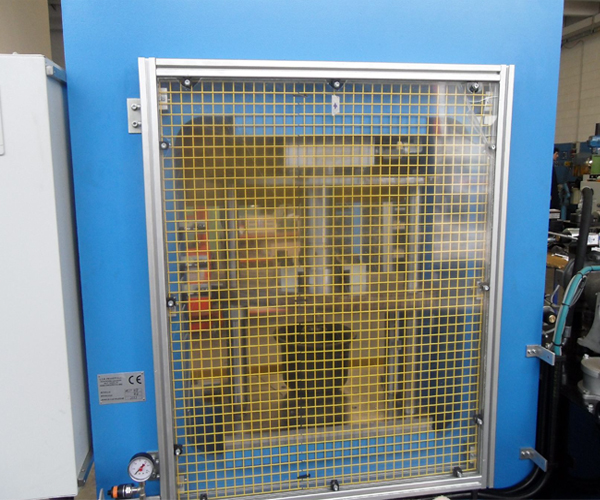

Press bench for leak test of welded pieces + joint. It works on pressure vessels of plastic and welded steel

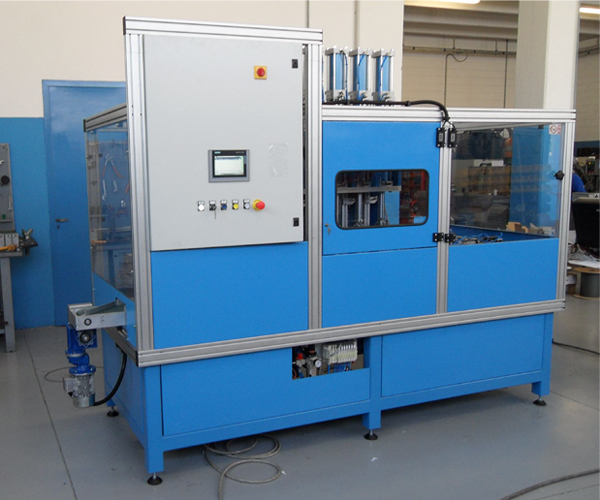

Test machine : high pressure leak test of welded valves

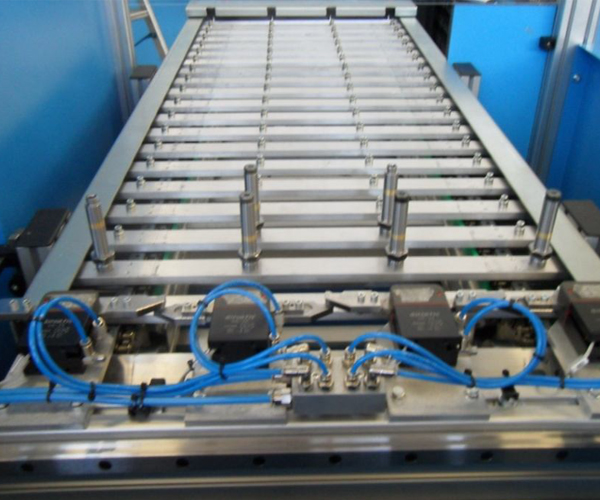

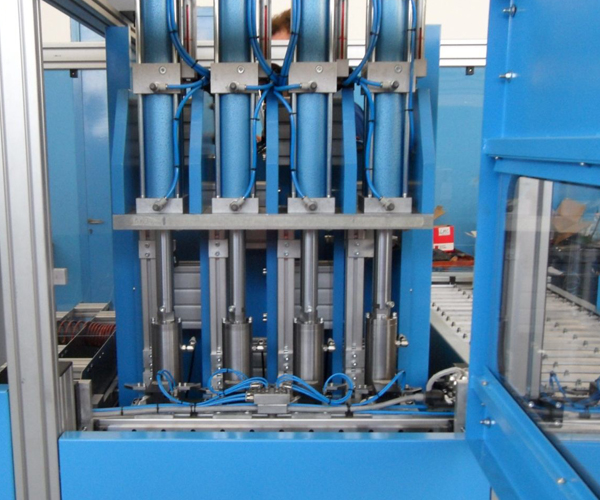

Valves to be tested on the conveyor (on the right) + System to control the leakage of the valves
Valves to be tested on the conveyor (on the right) + System to control the leakage of the valves

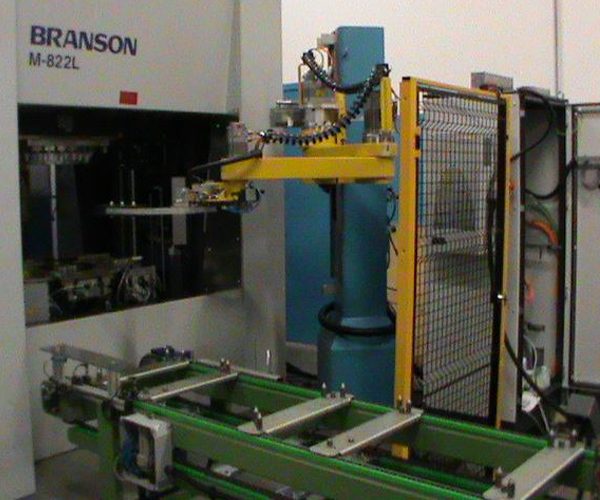

ROBOT SCARA HANDLING AND MACHINE INTEGRATION
Scara Robot

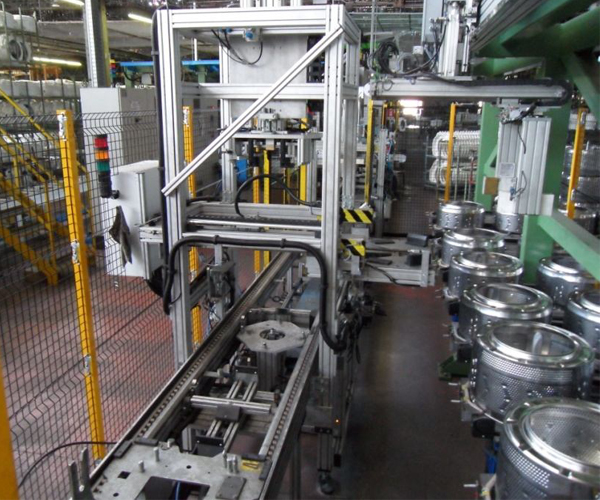

Transfer at 3 controlled axis

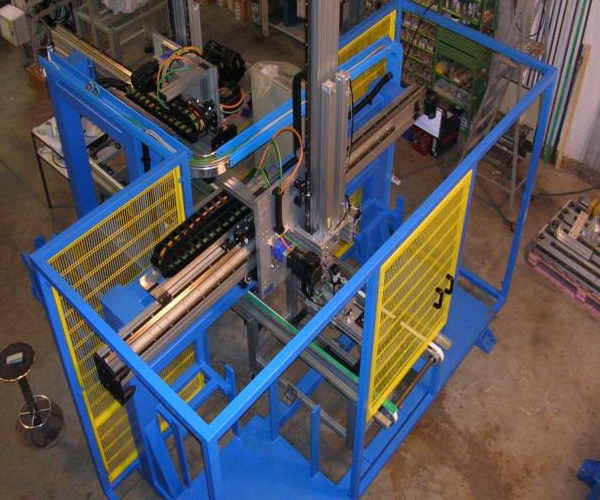

Ortogonal manipulator

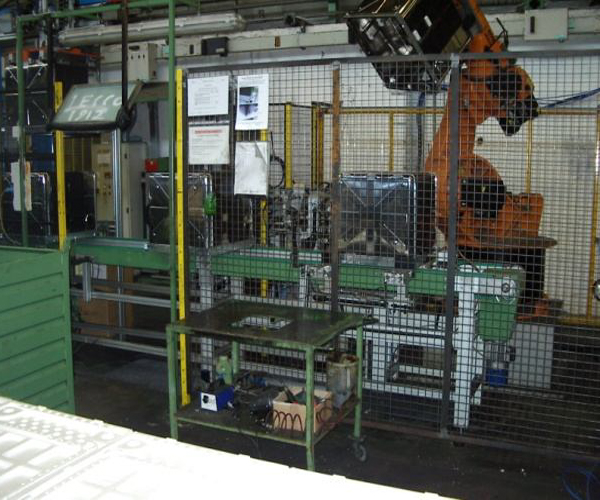

Isle with 6 axis Robot

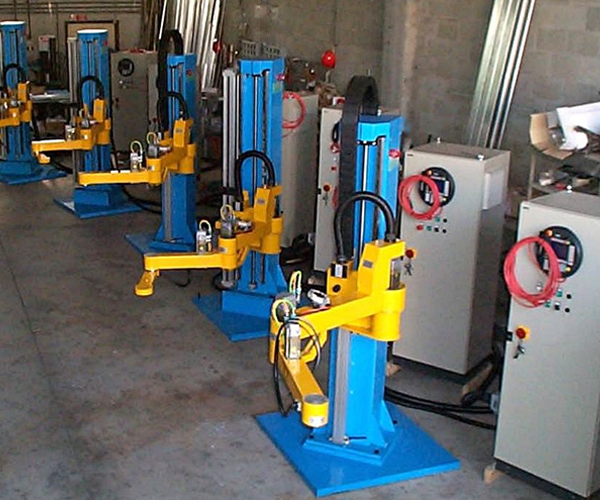

Scara Robot LCM

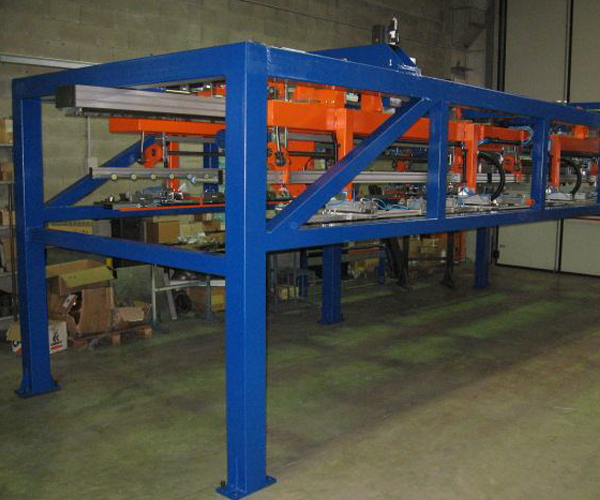

Stacker for sheet metal Max length of sheet 4mt., Width 2,5 mt These machines are used in Sheet metal processing lines.

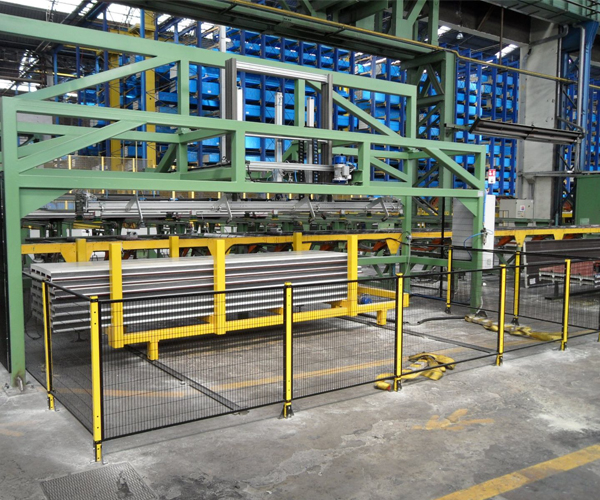

Gantry to handle sandwich sheet panels payload up to 150KG

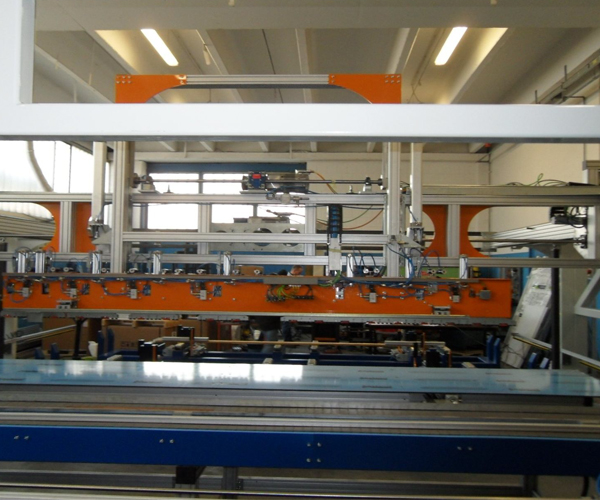

Gantry robot to handle copper bars payload up to 80 Kg. Head of a production line, it feeds a punch and a milling machine and its software manages the automatic drawer stock of raw material
