SCRAP COILER / WINDER

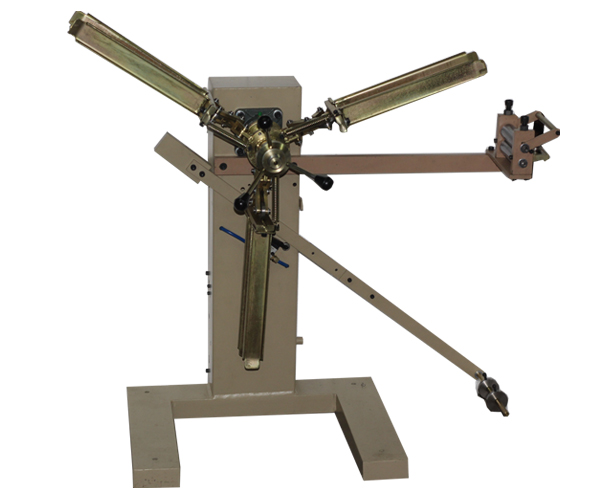

Scrap Coiler with Winding Arrangement

300 kg Scrap Coiler with Winding Arrangement

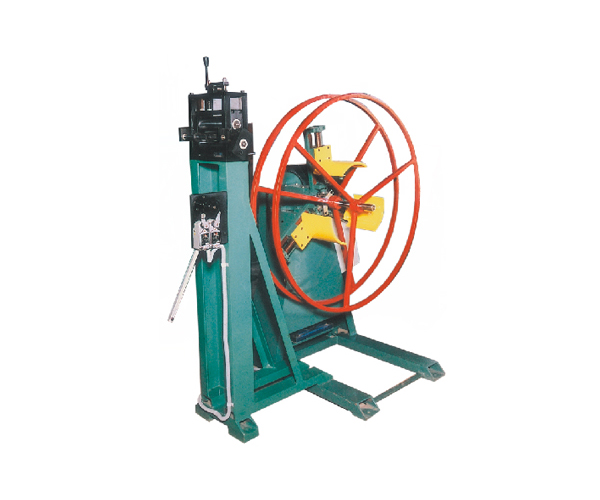

Scrap Coiler

Pneumatic Recoiler With Tension Winding

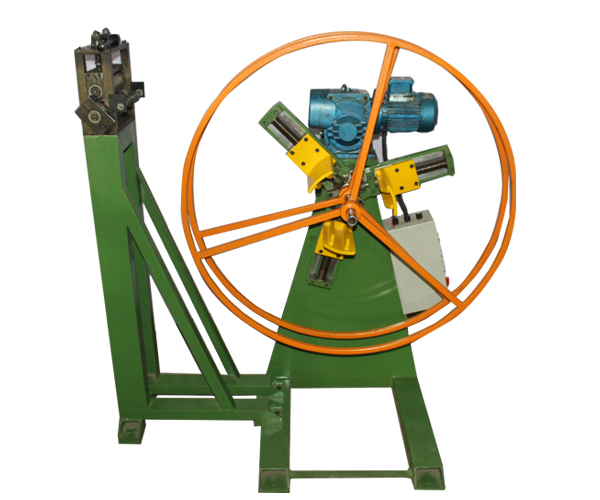

Recoiler With Tension Winding

Recoiler With Tension Winding

SCRAP COILER / TORQUE CONTROLLED WINDER

  • Special Purpose Winding Machine.
  • Centrally Expandable Jaws.
  • All Jaws have fully covered drum for best stability.
  • Pneumatically operated hold-down with potentiometer for speed variation & holding the coil with varying pressure with hand-lever.
  • Mandrel rotating on bearings.
  • Precision Tension Coiler & Winders for Strip Casting & Rolling Mills
  • The Spindle would be driven by D.C. Variable Drive with gear-reducer & brake mechanism. D.C. Drive is in constant tension. Speed reduces automatically with diameter build-up for tight winding.
  • The Control Panel would have following standard parameters : 1. Forward / Reverse Selector     2. Start / Stop Button    3. Emergency Shut Off & Hold-down
  • Speed / Tension Selector.
  • In-built Transformer.
  • Potentiometer to set the Tension manually.
  • Hand-Lever operation for low tension in starting high tension in working.
    • Standard Models for Scrap Coiler for Press Feed Equipment

    Motorised Decoiler ( Standard Models ) (Vertical )
    Model Max. Weight
    kg    		 Max.
    Width
    (mm)    		 JAW
    Expansion
    (mm)    		 Expansion
    Type (mm)    		 OD. Max
    (mm)    		 Power
    (hp)    		 Centre Height from Floor Occup. Area
    (mm)
    L. W. H.
    VD-1(PNE) 100 100 300 to 380 Mech Link Type 800 6 bar 600 850X800X1100
    VD-2 200 150 150 to 350 Mech Screw Type 800 0.5 600 850X800X1100
    VD-5 500 150 300 to 500 Mech Screw Type 1000 0.5 840 1050X950X1400
    VD-10 1000 300 330 to 450 Mech Link Type 1200 0.75 1005 1250X1100X1650
    VD-16 1600 400 330 to 450 Mech Link Type 1500 1 1040 1700X1150X1900
    VD-25 2500 400 420 to 530 Mech Link Type 1500 1.5 1050 1700X1300X1850
    VD-30 3000 600 460 to 560 Mech/Hyd Link Type 1500 3 905 1700X2000X1700
    VD-50 5000 800 460 to 560 Mech/Hyd Link Type 1500 5 980 1700X2500X1700
    VD-50 5000 1300 460 to 520 Mech/Hyd Link Type 1500 5 980 1700X3000X1700
    VD-100 10000 1300 460 to 520 Hyd Link / Wedge Type 1500 7.5 1205 1700X3850X2000
    VD-100 10000 1500 460 to 520 Hyd Link / Wedge Type 1500 7.5 1205 1700X4050X2000

    All above equipments are designed for Line speed of 12-15 Mtrs. Per Minute.

    Models of higher capacity or Higher or Lower Line speeds are available on request.

    Technical specifications are indicative and subject to change to suit end application.
