Press Room Automation is a leading manufacturer and supplier of motor stamping lines serving Coimbatore and the Coimbatore motor, pump and casting cluster. Backed by ISO-certified manufacturing and design since 2001, we support electric motor, pump, wet-grinder and lamination stamping units across Tamil Nadu with reliable, accurate press-room automation and prompt after-sales service, spares and installation.
Sheet-metal component makers in electrical, electronics, telecom and motor-stamping industries need to produce parts at higher strokes per minute to maximise return on factory space and manpower. Press Room has developed and installed complete high-speed feeding lines for motor and lamination stamping, built around a twin non-motorised decoiler, S-loop and precision straightener, and a high-speed feeder with mechanical or servo pilot release.
| Specification | Model 1T | Model 2T |
|---|---|---|
| Max Coil Weight | 1000 Kgs | 2000 Kgs |
| Max Coil Width | 150 mm | 1300 mm |
| RPM | 0–36 RPM | — |
| Line Speed | Up to 20 MPM | — |
| Feeding Angle | 180° | — |
| Loop Control | Via analogic sensor | — |
| Motor | 2 HP | 3 HP |
| Specification | Value |
|---|---|
| Coil Weight | Max 3000 Kgs × 2 Nos |
| Coil Width | Max 400 mm |
| Jaw Expansion Range | 470–530 mm |
| Coil Outer Diameter | 1500 mm |
| Line Speed | 60 MPM |
| Jaw Expansion Type | Hydraulic wedge type |
| Specification | Value |
|---|---|
| Max Coil Width | 600 mm |
| Thickness Range | 0.25–1.5 mm |
| Straightening Rolls | 19 Nos |
| Roller Diameter | φ25/32/40/50/60 mm |
| Backup Rolls | 2 Rows |
| Pinch Rolls | 2 Sets |
| Line Speed | Up to 40 MPM |
| Specification | Model 2T |
|---|---|
| Max Coil Weight | 2000 Kgs |
| Max Coil Width | 150 mm |
| Coil Outer Diameter | 1300 mm |
| RPM | 0–36 RPM |
| Loop Control | Via ultrasonic sensor |
| Motor | 3 HP |
| Straightening Rolls | 9 Rolls (φ25 mm) |
| Pinch Rolls | 2 Set (φ40 mm) |
| Line Speed | Up to 20 MPM |
| Specification | Value |
|---|---|
| Max Coil Width | 400 mm |
| Thickness Range | 0.35–1.0 mm |
| Straightening Rolls | 15 Nos |
| Pinch Rolls | 2 Sets |
| Line Speed | 60 MPM |
| Openable Head | Yes |
| Specification | Model VGi40 | Model VGi80 |
|---|---|---|
| Feed Pitch | 0–40 mm | 0–80 mm |
| Min Feeding Unit | 0.02 | — |
| Material Thickness | 0.1–2 mm | 0.1–1 mm |
| Grip Force | 800 N | — |
| Clamper Force | 400 N | — |
| Max Speed | 1400 spm | 1000 spm |
| Feeding Speed | 30 m/min | 32 m/min |
| Feeding Angle | 165° | — |
| Repeatability | ±0.04 mm | ±0.03 mm |
| Air Pressure | 490–690 kPa | — |
| Lubrication | Forced lubrication | — |
| Specification | Value |
|---|---|
| Max Feed Length | 9999 mm |
| Max Stock Width | 400 mm |
| Thickness Range | 0.1–1.0 mm |
| Diameter | 75 mm |
| SPM | 250 SPM @ 50 mm stroke; 100 SPM @ 400 mm stroke |
| Specification | Value |
|---|---|
| Max Feed Length | 9999 mm |
| Max Stock Width | 400 mm |
| Thickness Range | 0.1–1.0 mm |
| Diameter | 100 mm |
| SPM | 400 SPM @ 25 mm; 375 SPM @ 50 mm; 120 SPM @ 400 mm stroke |

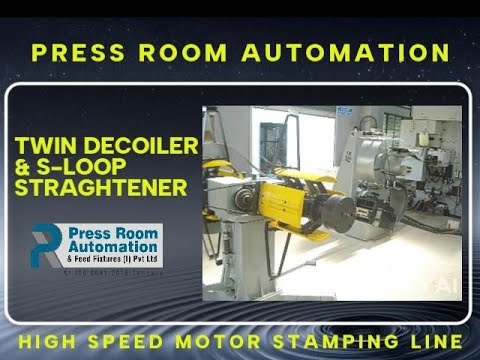

High Speed Feeding Line for Electrical Motor Stamping Watch on YouTube ↗
Talk to our engineers for the right model, a quotation or a plant visit.
Get A Quote Call +91 9819812717 / 9324044004 / 9322951554It is a complete coil line — twin decoiler, S-loop and precision straightener, and a high-speed feeder with pilot release — engineered to stamp motor and transformer laminations at high strokes per minute.
Depending on configuration the line reaches up to 60 m/min, with the servo pilot feeder running up to 400 SPM at 25 mm stroke length.
Electrical, electronics, telecom and electric-motor / lamination stamping manufacturers who need high-volume, high-accuracy thin-gauge feeding.
Yes. Press Room Automation supplies, installs and services the motor stamping line across Coimbatore and the surrounding Tamil Nadu industrial belt, including the Coimbatore motor, pump and casting cluster. Contact us at +91 9819812717 / 9324044004 / 9322951554 for a site visit or quotation.
We provide installation, commissioning, operator training, spares and breakdown support for customers in Coimbatore and nearby industrial areas.
