Twin Levelling for component Levelling



  Quality product for coil feeding in Press Feeding Lines

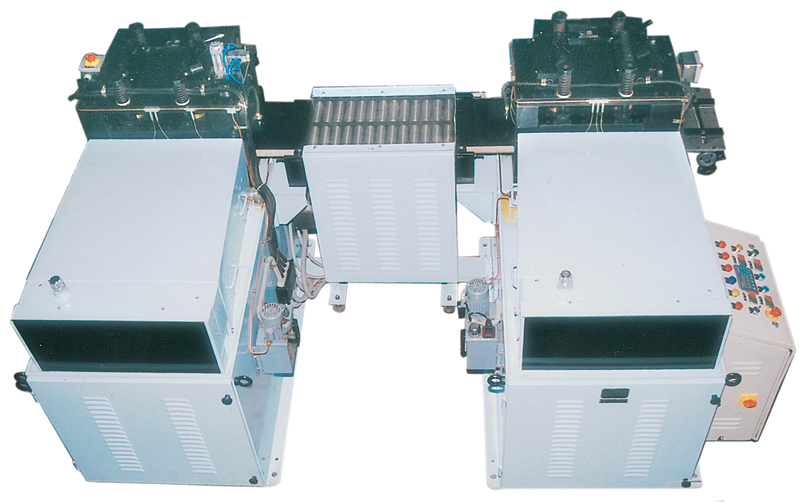

Twin Component Leveller

Twin Component Leveller


PLC based control panel for automatic indexing & single pass finished product







Twin Levelling

Round parts are always levelled in two directions. The most economical solution for series production such as clutch disks in a Twin Levelling machine. This double levelling line consists of 2 precision part levelling units connected by a turntable. Between the two levelling sequences the turnable turns the parts by 90°.

.......................
1. Adjustment of Straightening Rolls via Servo / A.C. Motor & Drive.
2. 10-30 Pats Setting Parameters can be Stored for Quick Retrieval in Future.
3. Accuracy of Roll Positioning in Range of 50 Microns.
4. Entire Operating Setting by Unskilled Operator, Once pre-programmed.
5. Possibility of Two Three Programme for Same Part due to variation of the Input Parameters like Hardness etc.
