CRADLE TYPE DECOILER CUM STRAIGHTENER

CRADLE TYPE DECOILER CUM STRAIGHTENER

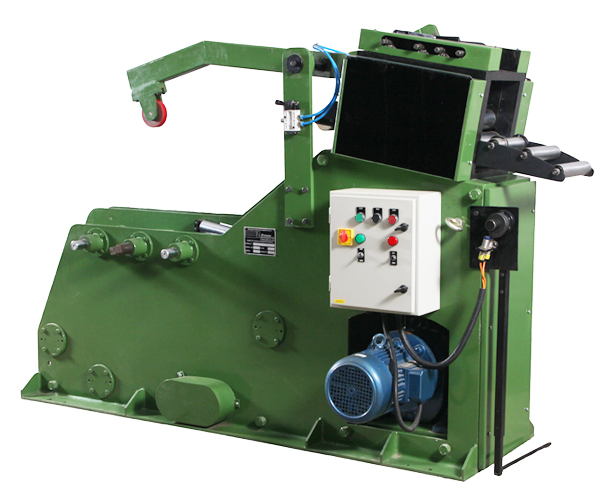

The system comprises of Cradle Unit along with driven Straightener mounted ahead of it. The feature of the system is that as the are mounted on same base structure, the alignment with respect to each other saving space & installation time.

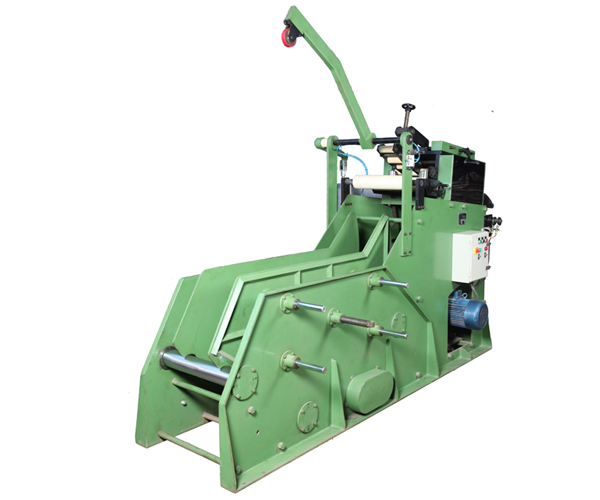

In coil cradle instead of expandable mandrel the coil is placed on driven rollers with adjustable side plates for centering. The side plates are optionally provided with side rollers for prevention of damage in sides for delicate coils.

Available in various models with fixed speed / A. C. variable speed & having loop control system to synchronize with Press-Feeding Speed along with control panel.

The decoiler & straightener heads are selected from our standard range to offer modularity & fast deliveries still maintain the quality levels of individual equipments.

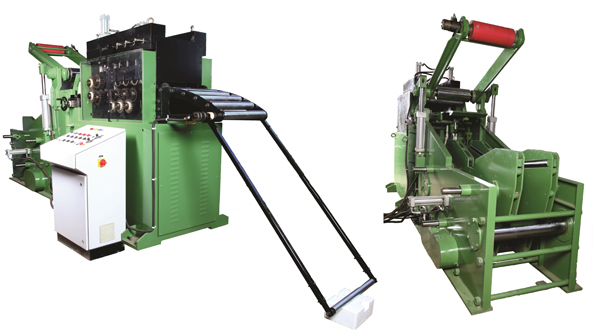

Heavy Duty Hydraulic Cradle type Decoiler cum Straightener

We can offered Heavy Duty Hydraulic Cradle Unit for thickness uptill 10 mm & width uptill 600mm.

Complete line consists of following.

  • 5 Tons heavy duty decoiler
  • Hydraulic side width guide
  • Snubber & Pillar
  • Hydraulic Pre Pinch Station
  • Hydraulic Pinch Station
  • Heavy Duty Straightener
  • Standard Models for Cradle type Decoiler cum Straightener for Press Feed Equipment

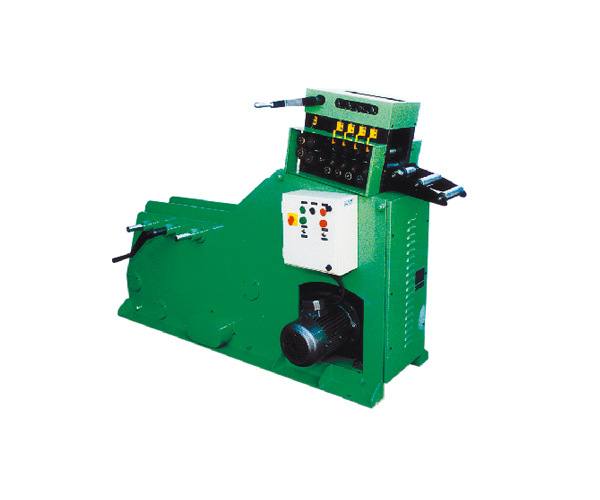

    Cradle Decoiler cum Straightener ( Standard Models )

    Model Max.
    Weight
    K.G.
    Max.
    Width
    (mm)
    Thickness
    (mm)
    Coil ID.
    Min.
    (mm)
    Coil
    OD.
    Max
    (mm)
    Power
    (HP)
    Centre
    Height
    from
    Floor
    Occup. Area  (mm)

    L.     W.     H.

    CDS-1500-200-65-7 1500 200 1 TO 3 450 1200 3.0 1100 2200X1000X1500
    CDS-1500-300-65-7 1500 300 1 TO 3 450 1200 3.0 1100 2200X1200X1500
    CDS-2500-300-80-7 2500 300 1 TO 4 450 1200 5.0 1100 2500X1500X1500
    CDS-2500-400-90-7 2500 400 1 TO 4 450 1200 5.0 1100 2500X1500X1500

    Heavy Duty Hydraulic Cradle type Decoiler cum Straightener ( Standard Models )

    Model Max.
    Weight
    K.G.
    Max.
    Width
    (mm)
    Thickness
    (mm)
    Coil ID.
    Min.
    (mm)
    Coil
    OD.
    Max
    (mm)
    Power
    (HP)
    Centre
    Height
    from
    Floor
    Occup. Area  (mm)

    L.     W.     H.

    CDS-1500-200-100-7 1500 200 2 TO 6 450 1200 5.0
    CDS-5000-400-125-8 5000 400 2 TO 10 500 1500 10.0
    CDS-5000-600-125-8 5000 600 2 TO 6 500 1500 10.0

    All above equipments are designed for Line speed of 12-15 Mtrs. Per Minute.

    Models of higher capacity or Higher or Lower Line speeds are available on request.

    Technical specifications are indicative and subject to change to suit end application.
