Single Decoiler

SINGLE DECOILER

FEATURES

  • Rigid Fabricated Structure.
  • Three / Four Self Centering Coil-location jaws. With mechanical gear reducer for models above 2.5 Tonne.
  • The Spindle & Coil holding heads housed in mechanical & precised machined housing & rotates on dust proofed sealed bearing element.
  • All motorised decoilers are chain driven soft start & stop through mechanical torque limiter & friction drag brake.
  • Drive System : A.C. Fixed Speed /A.C. Variable Speed (optional)

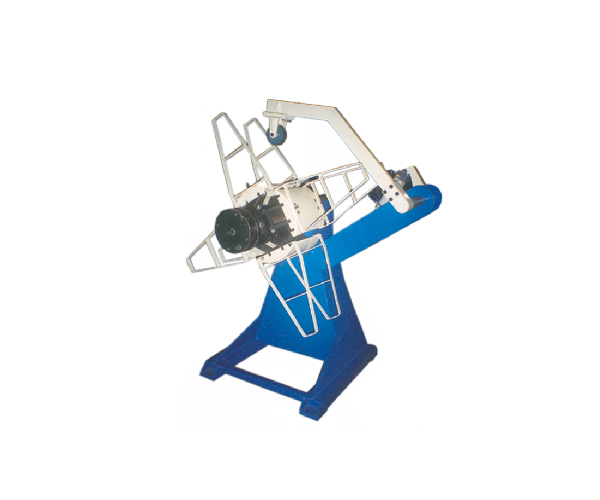

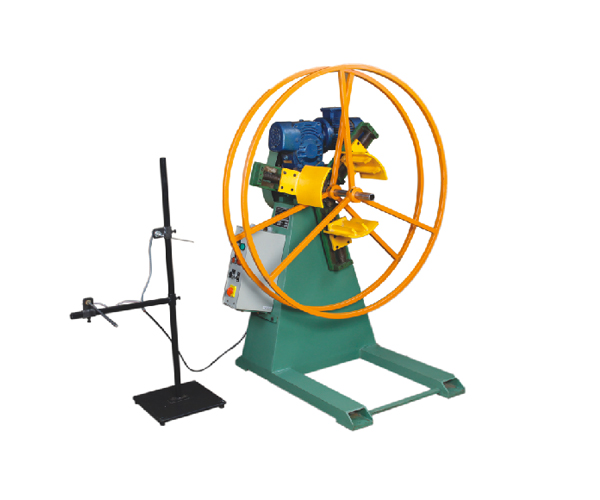

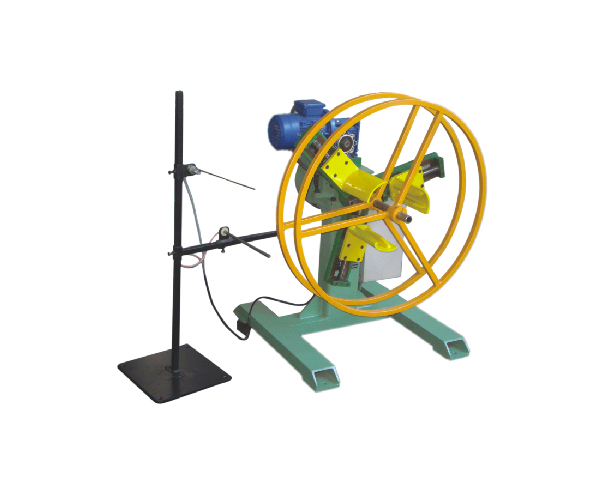

  • Control Panel with Suitable loop control system to maintain loop of coil for the machine via Antenna Type loop sensors / limit arm through limit Switches / Photosensors
  • OPTIONS

  • All units are available in non motorized version with drag brake.
  • Electro Magnetic / Pneumatic Brakes.
  • Coil hold-down (hydraulic / pneumatics ) for springy materials.

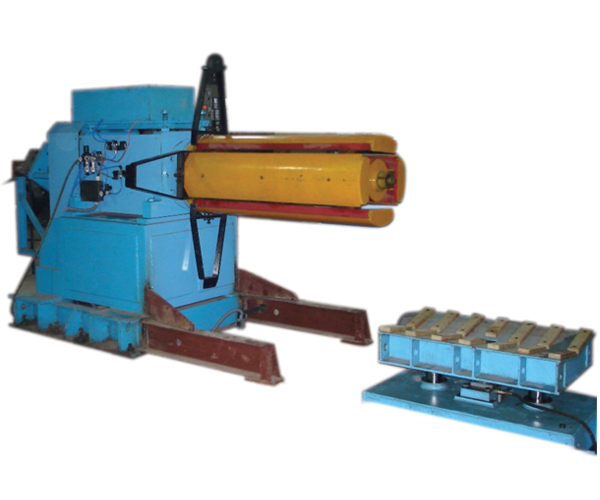

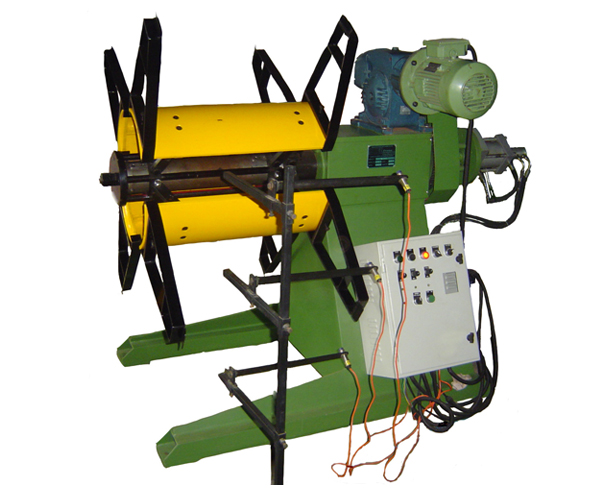

  • Hydraulic Jaws Expansion.
  • Decoilers with Shafting & Key to load bobbin.
  • Limit arm through limit Switches/Photo sensors.
  • Other Special features on request.
  • Standard Models for Decoiler for Press Feed Equipment

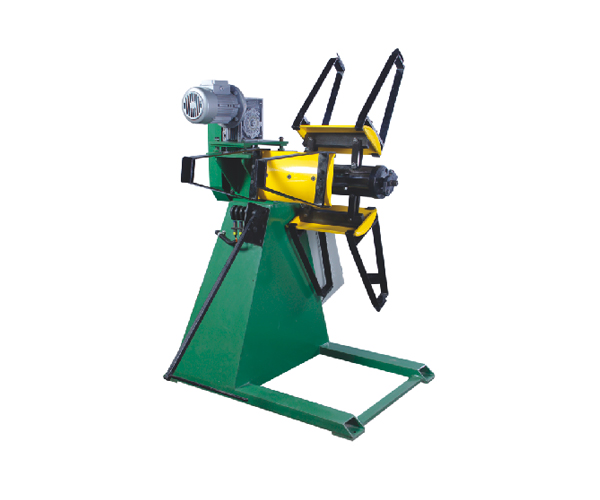

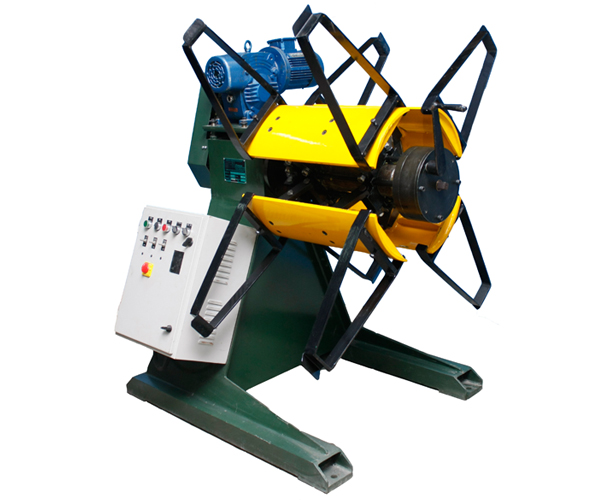

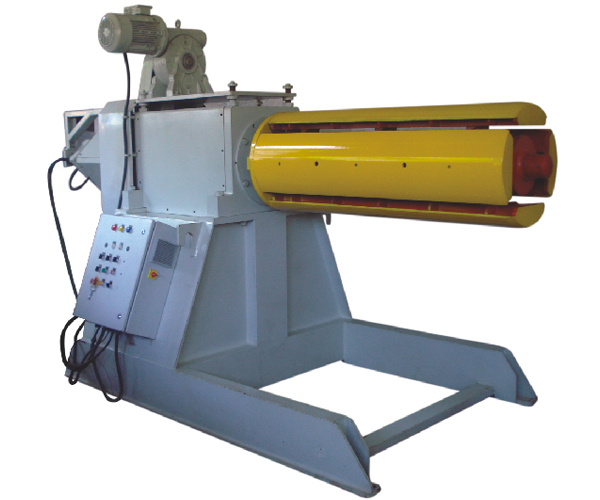

    Motorised Decoiler ( Standard Models ) (Vertical )

    Model Max. Weight
    kg
    Max.
    Width
    (mm)
    JAW
    Expansion
    (mm)
    Expansion
    Type (mm)
    OD. Max
    (mm)
    Power
    (hp)
    Centre Height from Floor Occup. Area
    (mm)
    L. W. H.
    VD-1(PNE) 100 100 300 to 380 Mech Link Type 800 6 bar 600 850X800X1100
    VD-2 200 150 150 to 350 Mech Screw Type 800 0.5 600 850X800X1100
    VD-5 500 150 300 to 500 Mech Screw Type 1000 0.5 840 1050X950X1400
    VD-10 1000 300 330 to 450 Mech Link Type 1200 0.75 1005 1250X1100X1650
    VD-16 1600 400 330 to 450 Mech Link Type 1500 1 1040 1700X1150X1900
    VD-25 2500 400 420 to 530 Mech Link Type 1500 1.5 1050 1700X1300X1850
    VD-30 3000 600 460 to 560 Mech/Hyd Link Type 1500 3 905 1700X2000X1700
    VD-50 5000 800 460 to 560 Mech/Hyd Link Type 1500 5 980 1700X2500X1700
    VD-50 5000 1300 460 to 520 Mech/Hyd Link Type 1500 5 980 1700X3000X1700
    VD-100 10000 1300 460 to 520 Hyd Link / Wedge Type 1500 7.5 1205 1700X3850X2000
    VD-100 10000 1500 460 to 520 Hyd Link / Wedge Type 1500 7.5 1205 1700X4050X2000

    All above equipments are designed for Line speed of 22 Mtrs. Per Minute.

    Models of higher capacity or Higher or Lower Line speeds are available on request.

    Technical specifications are indicative and subject to change to suit end application.
