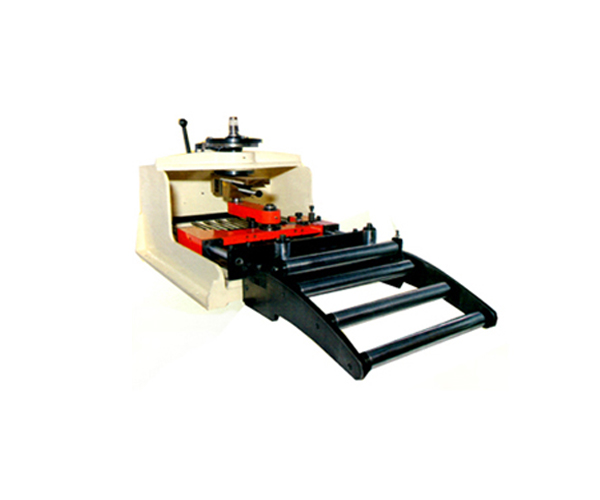

MECHANICAL GRIPPER FEEDER

Mechanical Gripper Feeder are perfect solutions for feeding strips on medium / high speed pressure.

Standard Features

  • Round guides with Linear ball bushings.
  • Capability to mount to any type of press.

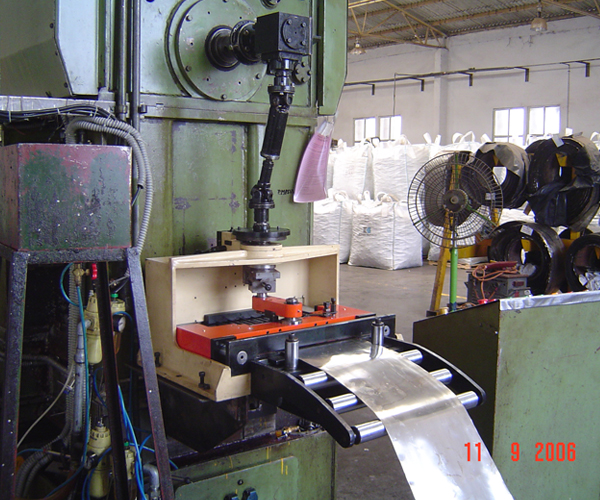

  • Transmission through bevel gear box and cardian shaft from the press.
  • Lubrication oiling by grease nipple.
  • Accuracy of +-0.025mm with mechanical pilot synchronisation
  • Easy setting of pitch length.
  • All adjustments are easily reachable.
  • Quick opening of the gripper for the strip insertion.
  • Release of the fixed gripper for die piloting in order to obtain & accurate positioning at high speed.
  • Adjustment for various thickness by means of knuckled knobs placed at the upper part of the feed.
  • Standard transmission for speeds uptill 300 strokes per minute including gear box, transmission shaft and rubber coupling.
  • Mounting stand bracket.
  • Cascade roll basket.
  • Mechanical Gripper Feeder Standard Models

     Type
     Width (mm)  Pitch (mm)
     Thickness max. (mm)
     Speed max. S.P.M.
    PRMGF-150
    5-150
    5-150
    2.0
    300
    PRMGF-300
    5-300
    5-300
    2.0
    300

    Technical specifications are indicative and subject to change to suit end application.
