Single Component Leveller

SINGLE COMPONENT LEVELLER

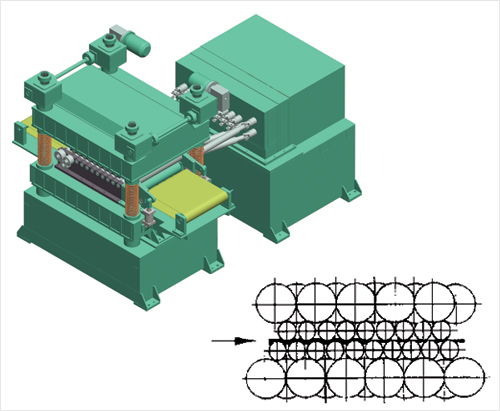

Component Leveller

Introduction

In the range of sheet metal coil feeding automation, Press Room has been redefining the industry standards & have brought out precision Single Component Levellers for straightening of coils, strips, components, sheets.

Why Press Room Single Component Levellers are your Profitable Decision...

  • Field Experience of more than 15 years.
  • Proper Engineering & Design
  • Correct Manufacturing process
  • Rigid frame work
  • Proper material selection & machined to highest dimensional accuracy.
  • Right rollers material & right process of manufacturing.
  • Best machine rigidity requiring no special foundation.
  • Easy access to parts for cleaning & maintenance.
  • Proper operator training.
  • Trained field technicians to support you for service & application. application.
  • Ease of parts/spares availability.
  • Single Person handling.
  • Free test trials for your components at our test lab.
    • Component Leveller
    Component Leveller

    Application of parts Levelling

    � Stampings � Motor laminations

    � Coil laminations � Control panels

    � Furniture panels � Saw blade blanks

    � Clutch plates � Microfilm spools

    � Brake plates � Bi-metal Bearings

    � Computer parts � CNC Turet punch parts

    Standard Features

  • Four-high design.
  • Manually adjustable back-up rolls
  • Small work rolls, hardened / ground / polished
  • All Straightening rolls are Powerd.
  • Integral universal geared drive.
  • Dial guage roll position indicator.
  • Oil bath gear case, sealed roll bearings,
  • Positive lubrication.
  • Bolted rugged main frame in one torque resisting assembly.
  • Main drive motor for 440V, 3ph, 50 cycle.
  • Run, Jog-Reverse, Stop” controls, Fusible disconnect..
  • Automatic central lubrication of work roll bearings.
  • Adjustable side guide.
  • Straightening accuracy+/- 0.01 to 0.05 is achieved
  • Depending on input component conditions, Raw material & hardness, roll setting, thickness variation of components.
  • 17/19/21 Straightening rolls.
  • Straightening roll diameter from 8mm to 200 mm to cover a wide range of jobs.
    • Component Leveller

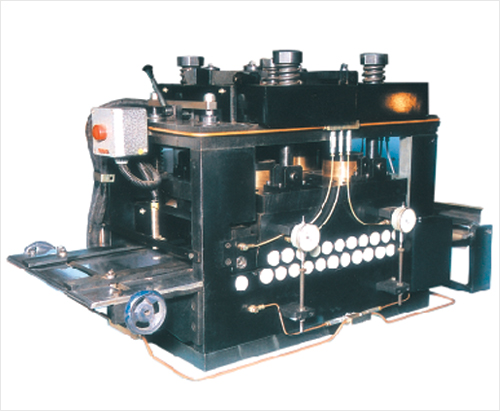

    Automatic PLC Controlled Part Leveller for Press feed equipment

    Component Leveller

    Optional Features

  • Five or six high configuration for one or two side special polished sheet stock, in place of four-high
  • Chrome plated work rolls.
  • Base for larger pass line
  • Slant base for press coil feed operations.
  • Variable speed drive and controls.
  • Loop control system.
  • Powered work roll positioning in place of manual.
  • Remote work roll position indicators.
  • Cascade rolls at entry or exit.
  • Powered pinch rolls.
  • Special features on request.
  • Motorised adjustment of rolls with digital display.
  • 25/31 Straightening rolls.
  • CNC Controlled levellers offered.
